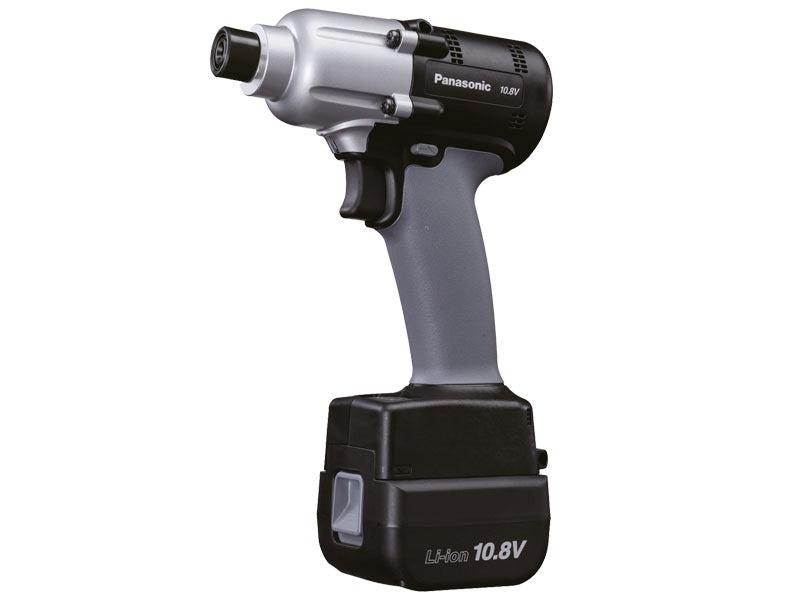

EYFLA7A10H IMPACT SCREW DRIVER

10.8V Mechanical Pulse Tool Driver EYFLA7A / EYFLA7AR

Models		EYFLA7A	EYFLA7AR
Voltage		10.8V
Series		AccuPulse - HR Series	AccuPulse - HR Series with 2-Way Communication
Drive		A = 1/4” Hex Quick Change
Torque Range	Nm	3-22Nm
	ft. lbs.	2.2-16.2 ft. lbs.
	in. lbs.	26.55-194.72 in. lbs
Max Torque* (F mode, tightening 3 sec.)		35Nm M10 Bolt
Flush Detection Modes		L1 - L7
No Load Speed (Torque Setting: RPM)		1: 0 – 950 2: 0 – 1250 3: 0 – 1450 4 - 8: 0 – 1550 9 - 40 & F: 0 – 2300
PPM (Pulses Per Min)		1: 0 – 1900 2: 0 – 2500 3: 0 – 2800 4-8: 0 – 3000 9-30 & F: 0 – 4000
Weight		1,15 kg (incl. 2.0 Ah (EYFB32B)) 1,35 kg (incl. 3.0 Ah (EYFB30B))
Size (L x W x H)		153mmx59mmx231mm (EYFB32) 153mmx59mmx249mm (EYFB30)
Wireless Communication with Assembly Qualifier:		—	X
LED Work Light: (ON/OFF Switch)		X
OK/NOK Light: (Green: OK / Red: NOK)		X
Rehit Prevention: (Possible to set per 0.1 sec. between 0-3 sec.)		X
Battery Indication Lamp: (3 stage)		X
Low Power Disable		X
Prevent / Detect Cross Threads & Rehits		X
Maintenance Interval Alarm		X
Variable Speed On / Off Switch		X
Variable Speed On / Off Switch		X
Buzzer: On / Off		X
Flush Point Detection Delay (Possible to set between 0-3 sec.. 0.1 sec. per stage)		X
Socket Extension Mode (h1:150mm socket, h2: for 250mm socket)		X
Work Capacity / Fastening Speed*		<M6: 10 N·m, Stage: 22> (EYFB30B) 1200 pcs/pack 0.7 sec/1pcs (EYFB32B) 800 pcs/pack 0.7 sec/1pcs
Charging Time*		(Battery pack EYFB30B, Charger EY0L82B) Usable charge: 35 min., Full charge: 45 min (Battery Pack EYFB32B, Charger EY0L82B) Usable Charge: 35 min., Full Charge: 40 min
